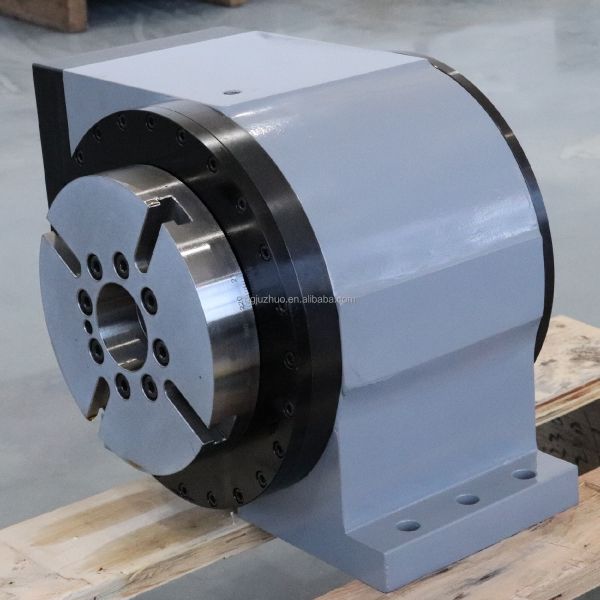

Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65

weight (kg) : 80

Model : DAR-170

center height : 135mm

Products name : 4th axis rotary table

brake torque : 150N.M

Place of Origin : Guangdong, China

Table loading capacity : 50kg

T-slot size : 12H8

Brand Name : Juzhuo

Machine Type : CNC rotary table, Direct-drive 4axis rotary table

Axis Orientation : Horizontal

machinery test report : Provided

Table diameter : 170

IP Rating : IP65

MOQ : 1

video outgoing-inspection : Provided

Name : CNC 4th Axis Rotary Table

Contact Now

Direct Drive Index Table, CNC 4th Axis Rotary Table

Direct-drive Torque Motor 4th Axis Rotary Table featuring high-performance direct-drive technology for precision machining applications.

Key Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48
Product Images
Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65 Direct Drive CNC Index Table , Horizontal CNC 4th Axis Rotary Table IP65
